WN Excavator 9503-2

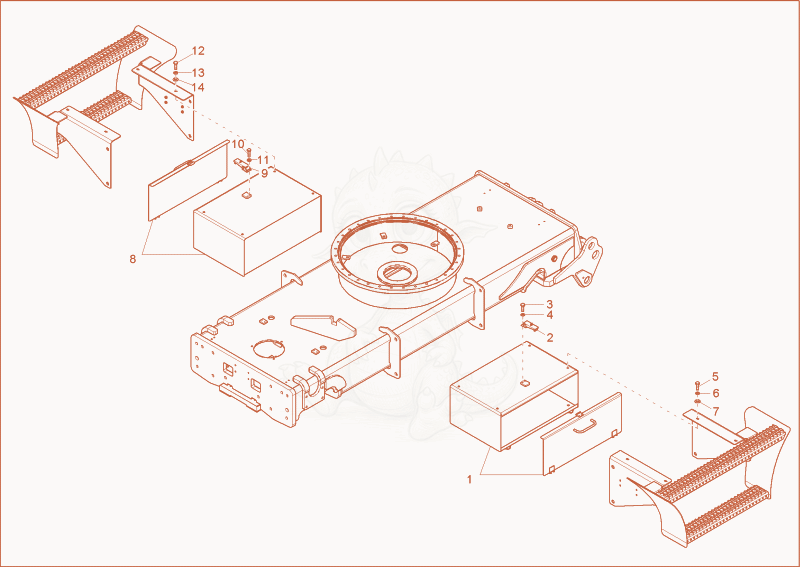

9503 tool case Diagram

Exploded parts diagram of the tool case of a Wacker Neuson 9503, with numbered balloons
Hover a box for the part, its price and its row below. Click it to select.
  • 11000155776
    $2,712.52
    Toolbox 1000155776×1
  • 21000157123
    $72.72
    tension latch - 1000157123×1
  • 31000085378
    $0.70
    hex screw - 1000085378×2
  • 41000094962
    $0.04
    washer A 5,3 A2C DIN125 - 1000094962×2
  • 51000015348Not stocked
    hex screw×4
  • 61000015438Not stocked
    lock washer×4
  • 71000015432
    $0.05
    washer 10,5 A2C DIN125 - 1000015432×4
  • 81000155776
    $2,712.52
    Toolbox 1000155776×1
  • 91000157123
    $72.72
    tension latch - 1000157123×1
  • 101000085378
    $0.70
    hex screw - 1000085378×2
  • 111000094962
    $0.04
    washer A 5,3 A2C DIN125 - 1000094962×2
  • 121000015348Not stocked
    hex screw×4
  • 131000015438Not stocked
    lock washer×4
  • 141000015432
    $0.05
    washer 10,5 A2C DIN125 - 1000015432×4
