WN Excavator 9503-2

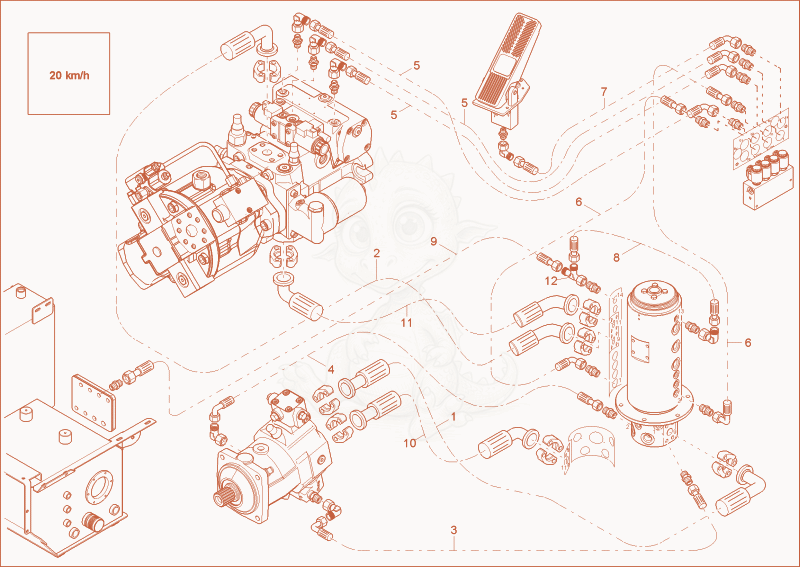

9503 Transmission 20km/h Installation Diagram

Exploded parts diagram of the Transmission 20km/h Installation of a Wacker Neuson 9503, with numbered balloons
Hover a box for the part, its price and its row below. Click it to select.
  • 11000186198
    $488.46
    Slhydrefg619Sf190Sf10L100090 1000186198×1
  • 21000281249
    $495.52
    Slhydrr5020Sf190Sf145L1420130 1000281249×2
  • 31000355953Not stocked
    Hose×1
  • 41000076438
    $13.94
    SLHYDR 2SC 6,0PN8 90 PN8 0 L550,0 0 - 1000076438×1
  • 51000013235Not stocked
    Hose×3
  • 61000117920
    $22.14
    SLHYDR 1SCP6,0PN8 0 PN8 90 L1300 0 - 1000117920×2
  • 71000076326
    $37.84
    SLHYDR 1SCP6,0PN8 0 PN8 90 L3100 0 - 1000076326×1
  • 81000076421
    $12.23
    SLHYDR 1SCP6,0PN8 0 PN8 90 L450,0 0 - 1000076421×1
  • 91000076311
    $13.13
    SLHYDR 1SCP6,0PN8 0 PN8 0 L1200 0 - 1000076311×1
  • 101000186197
    $495.75
    Slhydrefg619Sf190Sf10L1140330 1000186197×1
  • 111000281250
    $495.99
    Slhydrr5020Sf190Sf145L1420327 1000281250×1
  • 121000015515Not stocked
    screw joint×1
