WN Excavator 9503-2

9503 Stabilizers front (Option) Diagram

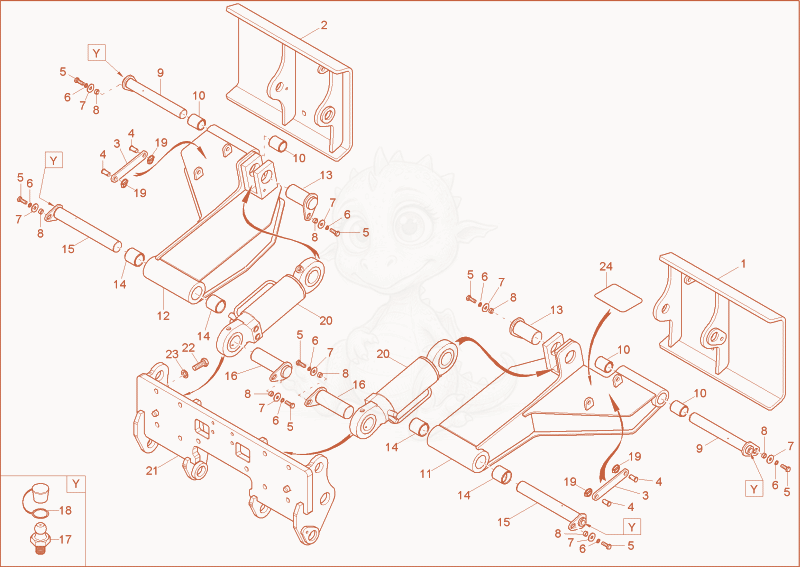

Exploded parts diagram of the Stabilizers front (Option) of a Wacker Neuson 9503, with numbered balloons
Hover a box for the part, its price and its row below. Click it to select.
  • 11000155779
    $1,812.32
    Footplate 1000155779×1
  • 21000157111
    $1,812.32
    Footplate 1000157111×1
  • 31000157143
    $51.08
    rod - 1000157143×2
  • 41000157080
    $16.82
    PIN - 1000157080×4
  • 51000085404
    $0.93
    hex screw - 1000085404×8
  • 61000082609
    $0.73
    lock washer - 1000082609×8
  • 71000085613
    $0.10
    washer - 1000085613×8
  • 81000157155
    $4.52
    WASHER - 1000157155×8
  • 91000157074
    $147.54
    Pin 1000157074×2
  • 101000015612Not stocked
    steel bushing×4
  • 111000155788
    $1,605.32
    Stabilizers right - 1000155788×1
  • 121000155780
    $2,748.11
    Stabilizers left - 1000155780×1
  • 131000157076
    $131.47
    Pin 1000157076×2
  • 141000015604Not stocked
    steel bushing×4
  • 151000157151
    $188.43
    PIN - 1000157151×2
  • 161000157072
    $318.88
    PIN - 1000157072×2
  • 171000015476Not stocked
    grease nipple×4
  • 181000015480Not stocked
    cap grease nipple×4
  • 191000050585Not stocked
    cotter pin×4
  • 201000155784
    $7,000.57
    Bladecylinder 1000155784×2
  • 211000157113
    $4,097.79
    Adapterplate 1000157113×1
  • 221000141354
    $4.79
    hex screw - 1000141354×6
  • 231000018440
    $1.10
    WASHER - 1000018440×6
  • 241000180128
    $92.33
    antislide covering - 1000180128×3
