WN Excavator 9503-2

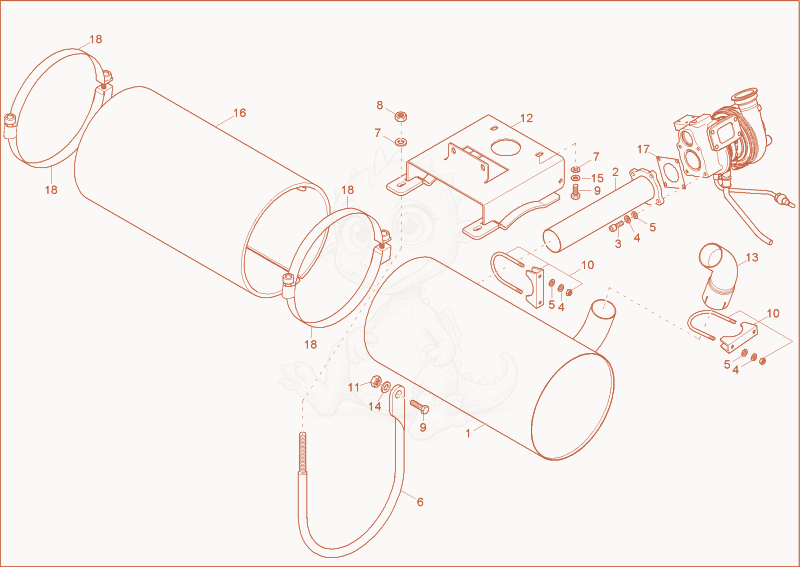

9503 exhaust Diagram

Exploded parts diagram of the exhaust of a Wacker Neuson 9503, with numbered balloons
Hover a box for the part, its price and its row below. Click it to select.
  • 11000188048
    $385.51
    Exhaust 1000188048×1
  • 21000160393
    $246.00
    exhaust pipe - 1000160393×1
  • 31000019593Not stocked
    cheese head screw×4
  • 41000015437Not stocked
    lock washer×6
  • 51000015431Not stocked
    washer×6
  • 61000160331
    $19.97
    CLAMP - 1000160331×2
  • 71000092303
    $0.86
    Washer 10,5 St A2C - 1000092303×6
  • 81000015407Not stocked
    hexagon nut×2
  • 91000015345
    $1.55
    Hex Screw M10x25-8.8 A2K-DIN933 - 1000015345×6
  • 101000068303
    $5.93
    clamp - 1000068303×2
  • 111000015408
    $1.33
    nut M10-8 A2C-DIN985 - 1000015408×2
  • 121000155782
    $55.87
    Bracketexhaust 1000155782×1
  • 131000160806
    $174.21
    exhaust pipe - 1000160806×1
  • 141000015432
    $0.05
    washer 10,5 A2C DIN125 - 1000015432×2
  • 151000015438Not stocked
    lock washer×4
  • 161000163490
    $210.13
    insulating mat exhaust - 1000163490×1
  • 171000171338
    $18.93
    SEAL - 1000171338×1
  • 181000083328
    $3.26
    hose clamp - 1000083328×4
