WN Excavator 9503-2

9503 TURNTABLE DRIVE UNIT INSTALLATION Diagram

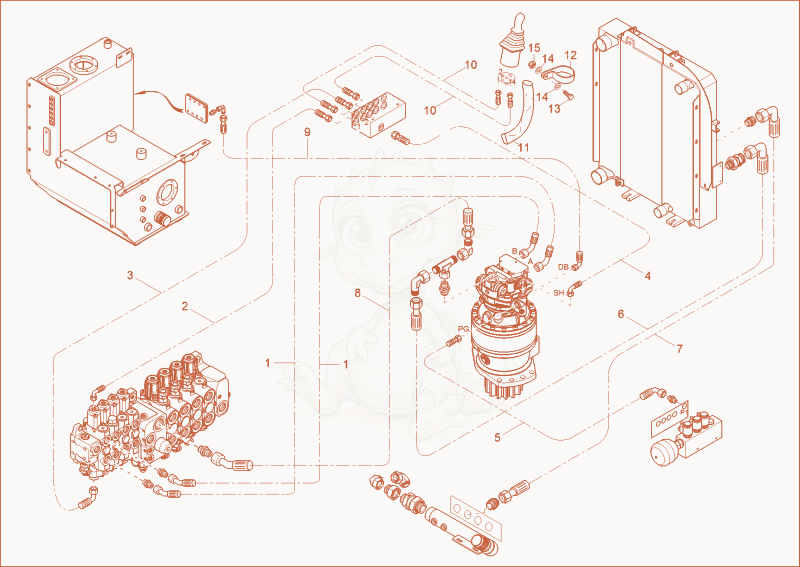

Exploded parts diagram of the TURNTABLE DRIVE UNIT INSTALLATION of a Wacker Neuson 9503, with numbered balloons
Hover a box for the part, its price and its row below. Click it to select.
  • 11000356016Not stocked
    Hose×2
  • 21000112927
    $38.69
    SLHYDR 1SCP6,0PN8 0 PN8 90 L2700 0 - 1000112927×1
  • 31000111742
    $60.67
    SLHYDR 1SCP6,0PN8 0 PN8 0 L2100 0 - 1000111742×1
  • 41000076406
    $15.77
    SLHYDR 1SCP6,0PN8 0 PN8 90 L1500 0 - 1000076406×1
  • 51000356034Not stocked
    Hose×1
  • 61000020514
    $209.97
    SLHYDR 1SC 25 PN28 90 PN28 0 L1300 0 - 1000020514×1
  • 71000126030
    $270.70
    SLHYDR 1SC 25 PN28 90 PN28 0 L1600 0 - 1000126030×1
  • 81000077956
    $111.99
    SLHYDR 1SC 25 PN28 45 PN28 0 L1100 0 - 1000077956×1
  • 91000076852
    $42.04
    SLHYDR 1SC 10 PN12 90 PN12 0 L800,0 0 - 1000076852×1
  • 101000112775
    $28.52
    SLHYDR 1SCP6,0PN8 0 PN8 0 L1500 0 - 1000112775×2
  • 111000097905
    $27.16
    protecting hose - 1000097905×0.85
  • 121000083250
    $5.91
    hose clamp - 1000083250×1
  • 131000015343Not stocked
    hex screw×1
  • 141000013027Not stocked
    washer×2
  • 151000015416
    $0.71
    DIN985-M8-8-A2C - 1000015416×1
