WN Excavator 9503-2

9503 DIPPER ARM OPERATION Diagram

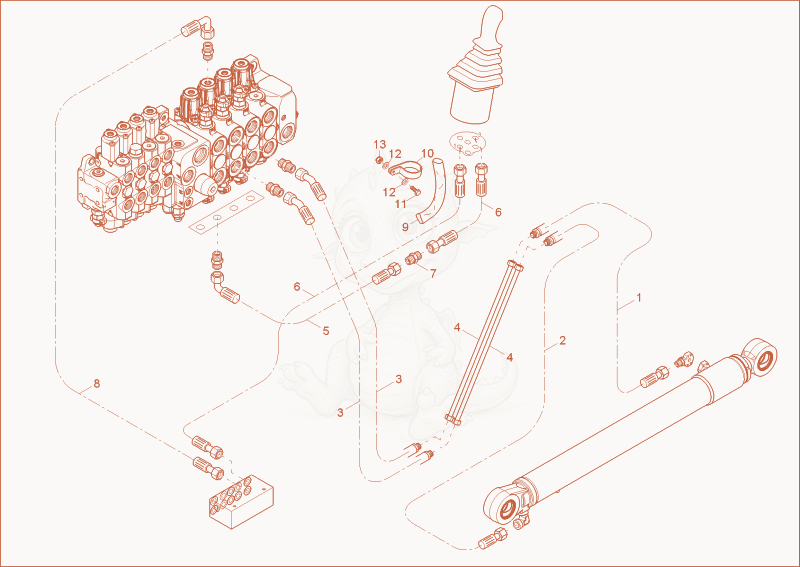

Exploded parts diagram of the DIPPER ARM OPERATION of a Wacker Neuson 9503, with numbered balloons
Hover a box for the part, its price and its row below. Click it to select.
  • 11000356058Not stocked
    Hose×1
  • 21000356057Not stocked
    Hose×1
  • 31000356008Not stocked
    Hose×2
  • 41000115106
    $246.61
    Pipeline 1000115106×2
  • 51000112772
    $36.43
    SLHYDR 1SCP6,0PN8 0 PN8 90 L2600 0 - 1000112772×1
  • 61000112775
    $28.52
    SLHYDR 1SCP6,0PN8 0 PN8 0 L1500 0 - 1000112775×2
  • 71000015545
    $2.43
    G08LA3CX - 1000015545×2
  • 81000076666
    $23.08
    SLHYDR 1SCP6,0PN8 0 PN8 90 L3300 0 - 1000076666×1
  • 91000097905
    $27.16
    protecting hose - 1000097905×0.85
  • 101000083250
    $5.91
    hose clamp - 1000083250×1
  • 111000015343Not stocked
    hex screw×1
  • 121000013027Not stocked
    washer×2
  • 131000015416
    $0.71
    DIN985-M8-8-A2C - 1000015416×1
