WN Excavator 9503-2

9503 lighting Diagram

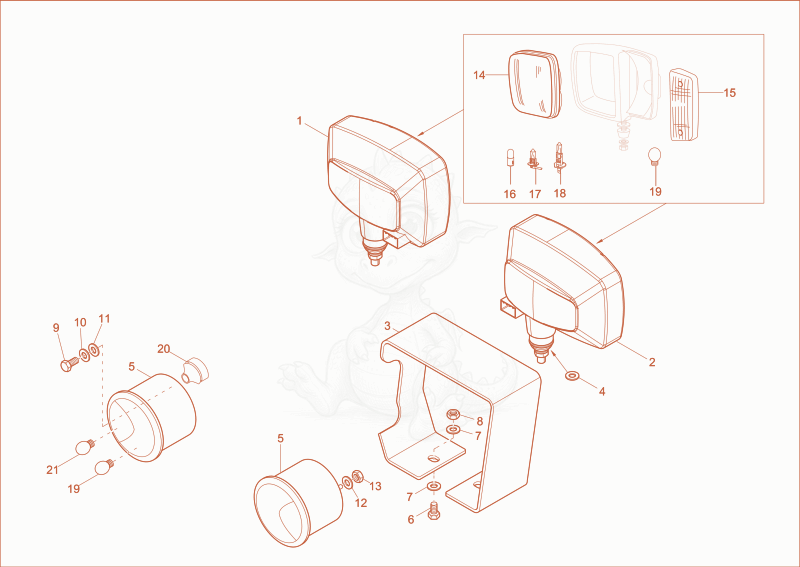

Exploded parts diagram of the lighting of a Wacker Neuson 9503, with numbered balloons
Hover a box for the part, its price and its row below. Click it to select.
  • 11000378807Not stocked
    main headlight×1
  • 21000378808Not stocked
    main headlight×1
  • 31000160349
    $277.13
    Protectionplate 1000160349×1
  • 41000085613
    $0.10
    washer - 1000085613×1
  • 51000098368
    $44.57
    Rear light - 1000098368×2
  • 61000085404
    $0.93
    hex screw - 1000085404×2
  • 71000049219Not stocked
    washer×8
  • 81000020127Not stocked
    hexagon nut×2
  • 91000019136Not stocked
    hex screw×1
  • 101000015437Not stocked
    lock washer×1
  • 111000015431Not stocked
    washer×1
  • 121000015430Not stocked
    u-washer×2
  • 131000015413Not stocked
    hexagon nut×2
  • 141000096853
    $2.87
    bulb - 1000096853×2
  • 151000106243
    $22.08
    Light cover - 1000106243×2
  • 161000001519
    $1.48
    bulb - 1000001519×2
  • 171000015293Not stocked
    bulb×2
  • 181000109712
    $11.39
    bulb - 1000109712×2
  • 191000085000
    $0.97
    lamp - 1000085000×4
  • 201000167586
    $15.74
    rubber gasket - 1000167586×2
