WN Excavator 9503-2

9503 LUFFING BOOM CYLINDER OPERATION Diagram

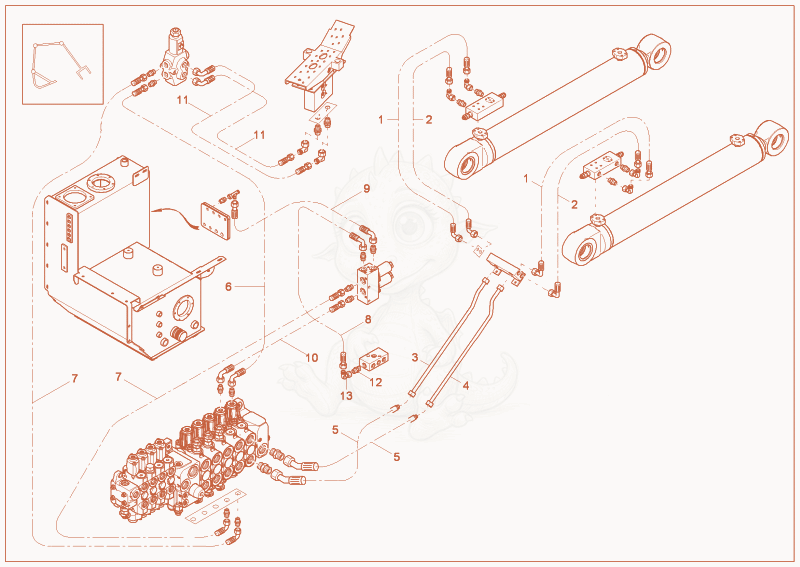

Exploded parts diagram of the LUFFING BOOM CYLINDER OPERATION of a Wacker Neuson 9503, with numbered balloons
Hover a box for the part, its price and its row below. Click it to select.
  • 11000144425
    $160.60
    SLHYDR 4SP 13 PP16 90 PP16 0 L1100 S0 - 1000144425×2
  • 21000144424
    $165.13
    SLHYDR 4SP 13 PP16 90 PP16 0 L1150 S0 - 1000144424×2
  • 31000142071
    $73.33
    pipe line - 1000142071×1
  • 41000142072
    $81.22
    pipe line - 1000142072×1
  • 51000356007Not stocked
    Hose×2
  • 61000114549Not stocked
    Hose×1
  • 71000076293
    $59.24
    SLHYDR 1SCP6,0PN8 0 PN8 90 L2400 0 - 1000076293×2
  • 81000076333
    $30.82
    SLHYDR 1SCP6,0PN8 0 PN8 90 L400,0 0 - 1000076333×1
  • 91000016760Not stocked
    Hose×1
  • 101000076667
    $79.75
    SLHYDR 1SCP6,0PN8 0 PN8 90 L3000 0 - 1000076667×1
  • 111000112776
    $22.17
    SLHYDR 1SCP6,0PN8 0 PN8 90 L800,0 0 - 1000112776×2
  • 121000015488Not stocked
    screw joint×1
  • 131000000542
    $11.08
    EW08LOMD - 1000000542×1
