WN Excavator 9503-2

9503 Transmission 40km/h Diagram

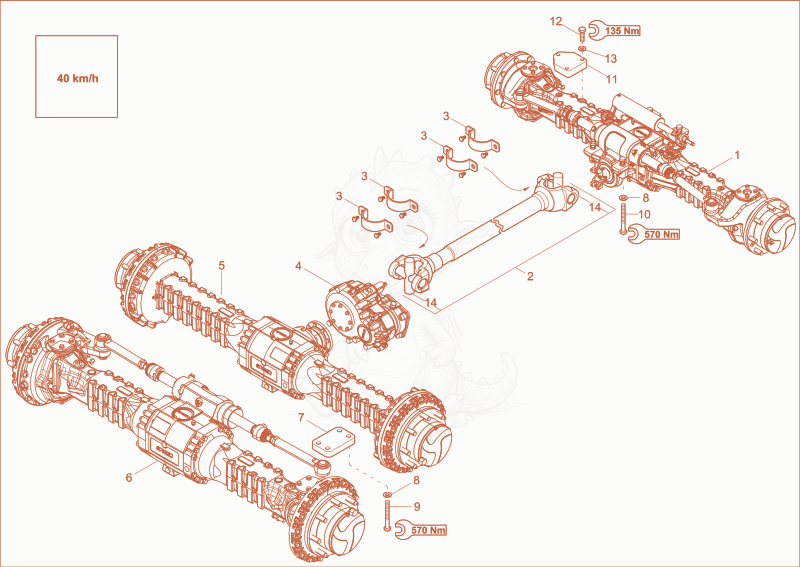

Exploded parts diagram of the Transmission 40km/h of a Wacker Neuson 9503, with numbered balloons
Hover a box for the part, its price and its row below. Click it to select.
  • 11000158303
    $19,814.38
    Frontaxle 1000158303×1
  • 21000471490Not stocked
    cardan shaft×1
  • 31000073331
    $14.21
    fastener set - 1000073331×4
  • 41000275669
    $8,005.53
    Distributorgear Box 1000275669×1
  • 51000158304
    $12,871.67
    Rearaxle 1000158304×1
  • 61000158305
    $32,036.50
    Rearaxle 1000158305×1
  • 71000157148
    $138.36
    Plate 1000157148×2
  • 81000018440
    $1.10
    WASHER - 1000018440×12
  • 91000047534Not stocked
    hex screw×8
  • 101000047529Not stocked
    hex screw×4
  • 111000157153
    $411.38
    Plate 1000157153×2
  • 121000047403Not stocked
    hex screw×6
  • 131000019126Not stocked
    u-washer×6
  • 141000477422Not stocked
    cross union×2
