WN Excavator 9503-2

9503 CABIN FRAME 2 Diagram

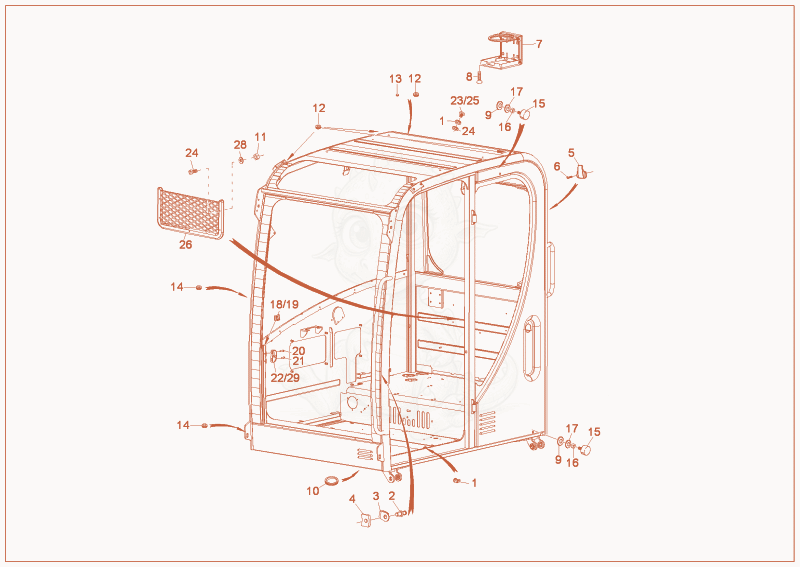

Exploded parts diagram of the CABIN FRAME 2 of a Wacker Neuson 9503, with numbered balloons
Hover a box for the part, its price and its row below. Click it to select.
  • 11000015448Not stocked
    washer×2
  • 21000004271Not stocked
    catch bolt×1
  • 31000075584
    $3.16
    BRACKET - 1000075584×1
  • 41000068933Not stocked
    thread plate×1
  • 51000124822
    $19.56
    cloth hook - 1000124822×2
  • 61000048126Not stocked
    cheese head screw×2
  • 71000171733
    $56.99
    bottle holder - 1000171733×1
  • 81000075578
    $0.60
    COUNTERSUNK SCREW - 1000075578×4
  • 91000004289Not stocked
    rubber disc×2
  • 101000124807
    $15.03
    hose sleeve - 1000124807×1
  • 111000082547
    $0.88
    nut M4-8 A2C-DIN985 - 1000082547×5
  • 121000075523
    $2.92
    blind plug - 1000075523×8
  • 131000068932Not stocked
    blind plug×2
  • 141000066256Not stocked
    sleeve×3
  • 151000068973Not stocked
    rubber buffer×2
  • 161000015416
    $0.71
    DIN985-M8-8-A2C - 1000015416×2
  • 171000012879Not stocked
    quad ring×2
  • 181000241675
    $3.22
    rubber seal - 1000241675×1
  • 191000241676
    $4.10
    rubber seal - 1000241676×1
  • 201000048130Not stocked
    cheese head screw×2
  • 211000085451
    $0.70
    allen screw M5x16-8.8 A2C DIN912 - 1000085451×2
  • 221000003866Not stocked
    catch-rests×1
  • 231000047883Not stocked
    hex screw×1
  • 241000093520
    $2.25
    Washer (Polyamid) - 1000093520×3
  • 251000085389
    $0.73
    hex screw M8x12-8.8 A2C DIN933 - 1000085389×2
  • 261000168897
    $63.72
    net - 1000168897×1
  • 271000082362
    $0.75
    ovalhead screw - 1000082362×5
  • 281000094985
    $2.29
    washer - 1000094985×5
  • 291000003867Not stocked
    catch-rests×1
  • 301000179720
    $4.92
    cage nut - 1000179720×3
