WN Excavator 9503-2

9503 LIFTING BOOM OPERATION Diagram

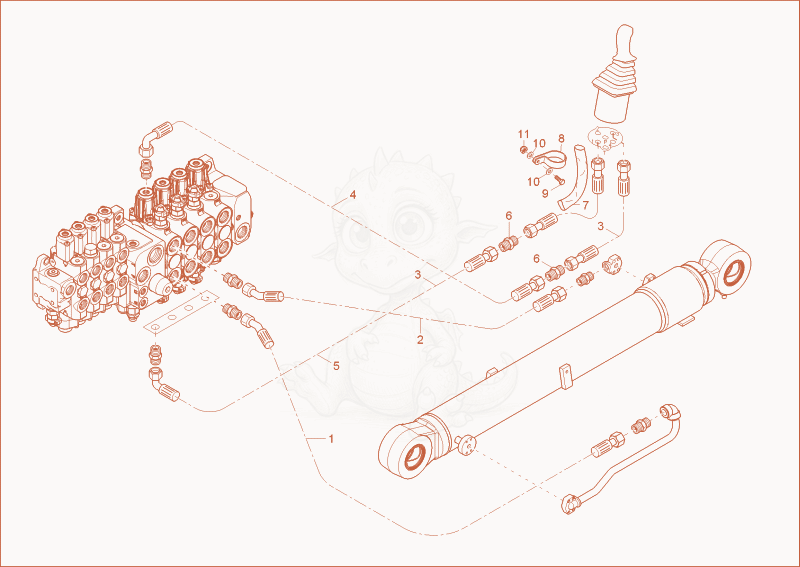

Exploded parts diagram of the LIFTING BOOM OPERATION of a Wacker Neuson 9503, with numbered balloons
Hover a box for the part, its price and its row below. Click it to select.
  • 11000356010Not stocked
    Hose×1
  • 21000356009Not stocked
    Hose×1
  • 31000125485
    $58.60
    SLHYDR 1SCP6,0PN8 0 PN8 0 L2500 0 - 1000125485×2
  • 41000076666
    $23.08
    SLHYDR 1SCP6,0PN8 0 PN8 90 L3300 0 - 1000076666×1
  • 51000112927
    $38.69
    SLHYDR 1SCP6,0PN8 0 PN8 90 L2700 0 - 1000112927×1
  • 61000015545
    $2.43
    G08LA3CX - 1000015545×2
  • 71000097905
    $27.16
    protecting hose - 1000097905×0.85
  • 81000083250
    $5.91
    hose clamp - 1000083250×1
  • 91000015343Not stocked
    hex screw×1
  • 101000013027Not stocked
    washer×2
  • 111000015416
    $0.71
    DIN985-M8-8-A2C - 1000015416×1
