WN Excavator 9503-2

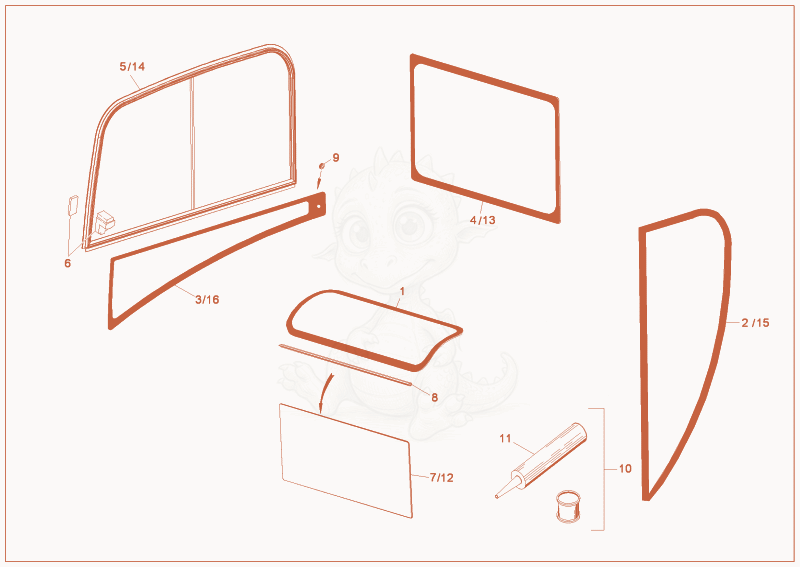

9503 CABIN WINDOWS Diagram

Exploded parts diagram of the CABIN WINDOWS of a Wacker Neuson 9503, with numbered balloons
Hover a box for the part, its price and its row below. Click it to select.
  • 11000260287
    $440.79
    Windshieldtinted 1000260287×1
  • 21000112044
    $258.60
    Sidewindow 1000112044×1
  • 31000112046
    $603.93
    Sidewindow 1000112046×1
  • 41000112043
    $410.96
    Rearwindow 1000112043×1
  • 51000126229
    $1,119.33
    X -1000244633 SLIDE WINDOW - 1000126229×1
  • 61000068951
    $84.74
    locking - 1000068951×1
  • 71000130111
    $271.49
    FRONT WINDOW - 1000130111×1
  • 81000124877
    $64.98
    strap - 1000124877×1
  • 91000075523
    $2.92
    blind plug - 1000075523×1
  • 101000001353Not stocked
    glue kt×1
  • 111000001352Not stocked
    glue cartridge×1
  • 121000130112
    $365.54
    Windshieldtinted 1000130112×1
  • 131000108814
    $649.95
    Backwindowtinted 1000108814×1
  • 141000126233
    $1,716.64
    Slidingwindowtinted 1000126233×1
  • 151000108813
    $746.34
    Sidewindowtinted 1000108813×1
  • 161000142780
    $559.81
    Sidewindowtinted 1000142780×1
