WN Excavator 9503-2

9503 swivel bucket Diagram

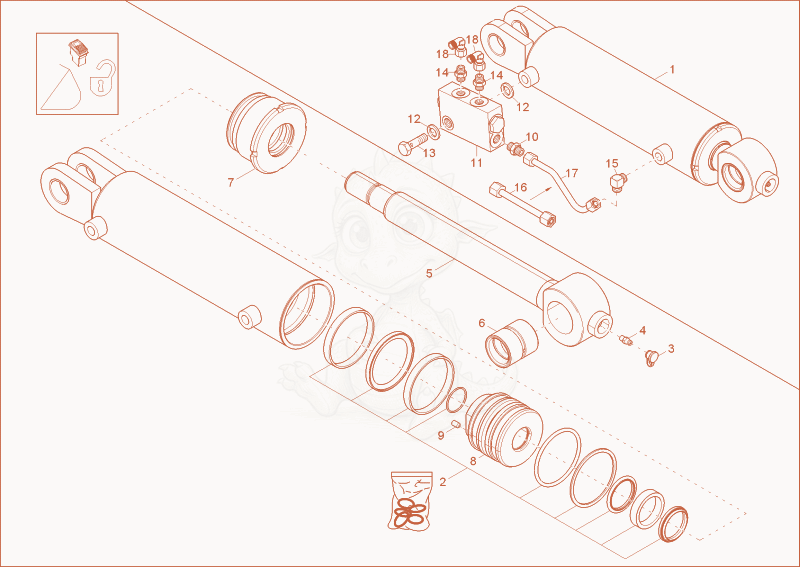

Exploded parts diagram of the swivel bucket of a Wacker Neuson 9503, with numbered balloons
Hover a box for the part, its price and its row below. Click it to select.
  • 11000169475
    $1,651.35
    Swivelbucketcylinder 1000169475×1
  • 21000170742
    $50.93
    cylinder seal kit - 1000170742×1
  • 31000015480Not stocked
    cap grease nipple×1
  • 41000015475Not stocked
    grease nipple×2
  • 51000170745
    $773.65
    Pistonrod 1000170745×1
  • 61000015609Not stocked
    steel bushing×1
  • 71000170746
    $303.60
    Guidebushing 1000170746×1
  • 81000170748
    $236.14
    PISTON - 1000170748×1
  • 91000082253
    $1.18
    thread pin - 1000082253×1
  • 101000085114
    $3.58
    GE10LMEDOMDA3C - 1000085114×1
  • 111000130262
    $781.94
    non return valve - 1000130262×1
  • 121000089423
    $2.11
    seal ring - 1000089423×2
  • 131000089422
    $80.31
    Banjo bolt - 1000089422×1
  • 141000085078
    $5.77
    GE12LM14X1,5EDOMDA3C - 1000085078×2
  • 151000471589Not stocked
    screw joint×1
  • 161000184478Not stocked
    pipe line×1
  • 171000264489
    $61.99
    pipe line - 1000264489×1
  • 181000000573Not stocked
    screw joint×2
