WN Excavator 9503-2

9503 lubrication Diagram

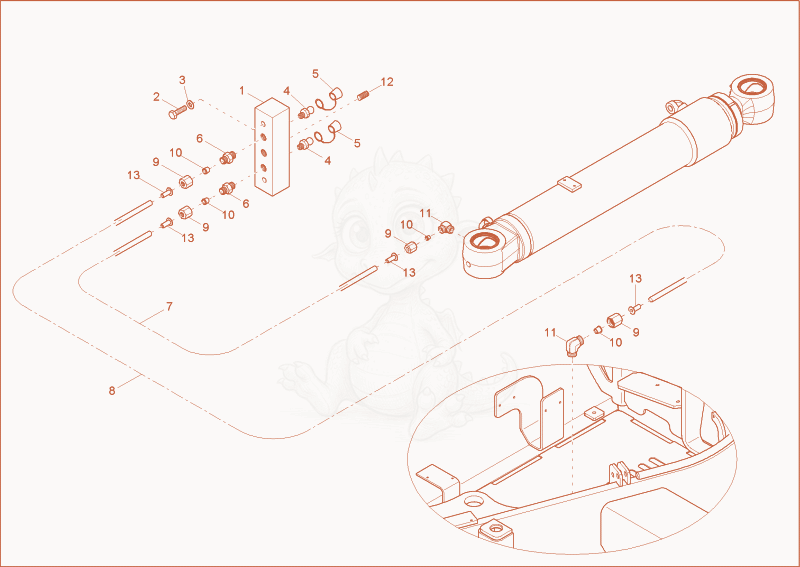

Exploded parts diagram of the lubrication of a Wacker Neuson 9503, with numbered balloons
Hover a box for the part, its price and its row below. Click it to select.
  • 11000064473Not stocked
    grease nipple block×1
  • 21000085384
    $0.84
    6-Point screw M6x25-8.8 A2C-DIN933 - 1000085384×2
  • 31000015436Not stocked
    lock washer×2
  • 41000015475Not stocked
    grease nipple×2
  • 51000015480Not stocked
    cap grease nipple×2
  • 61000015532Not stocked
    screw joint×2
  • 71000304322
    $23.53
    lubrication line - 1000304322×1.2
  • 81000304322
    $23.53
    lubrication line - 1000304322×1.8
  • 91000015536Not stocked
    union nut×4
  • 101000015537
    $0.41
    D6LL - 1000015537×4
  • 111000082861
    $16.09
    WE06LLR1/8A3CX - 1000082861×2
  • 121000082293
    $0.70
    thread pin - 1000082293×1
  • 131000152581
    $0.62
    plug sleeve - 1000152581×4
