WN Excavator 9503-2

9503 Stabilizers OPERATION Diagram

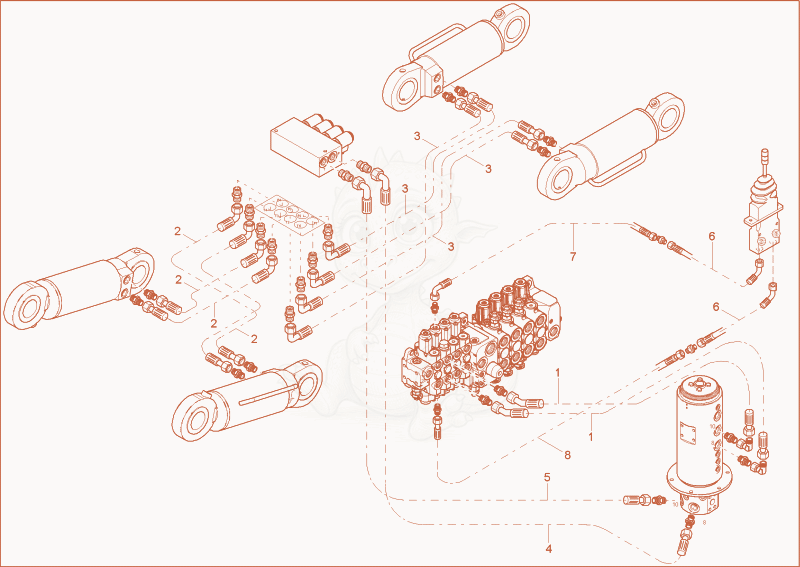

Exploded parts diagram of the Stabilizers OPERATION of a Wacker Neuson 9503, with numbered balloons
Hover a box for the part, its price and its row below. Click it to select.
  • 11000356059Not stocked
    Hose×2
  • 21000356053Not stocked
    Hose×4
  • 31000356054Not stocked
    Hose×4
  • 41000356055Not stocked
    Hose×1
  • 51000356056Not stocked
    Hose×1
  • 61000149577
    $34.50
    SLHYDR 1SCP6,0PN8 0 PN8 45 L1700 0 - 1000149577×2
  • 71000076667
    $79.75
    SLHYDR 1SCP6,0PN8 0 PN8 90 L3000 0 - 1000076667×1
  • 81000145355
    $43.43
    SLHYDR 1SCP6,0PN8 0 PN8 0 L2600 0 - 1000145355×1
