WN Excavator 9503-2

9503 RELAY BOX Diagram

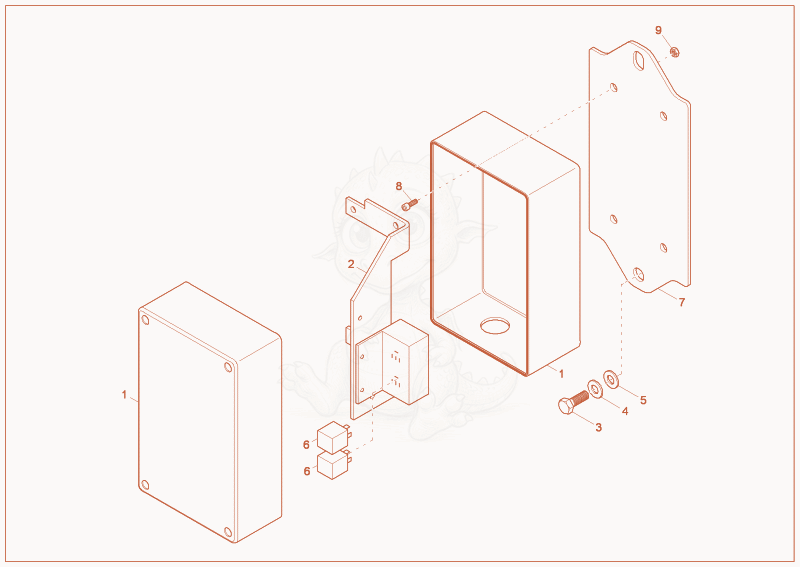

Exploded parts diagram of the RELAY BOX of a Wacker Neuson 9503, with numbered balloons
Hover a box for the part, its price and its row below. Click it to select.
  • 11000107396
    $202.65
    HOUSING - 1000107396×1
  • 21000113055
    $225.48
    bracket relay - 1000113055×1
  • 31000085411
    $1.37
    hex screw M10x20-8.8 A2C DIN933 - 1000085411×2
  • 41000015438Not stocked
    lock washer×2
  • 51000015432
    $0.05
    washer 10,5 A2C DIN125 - 1000015432×2
  • 61000081794
    $49.74
    RELAY - 1000081794×2
  • 71000125645
    $29.45
    bracket relay box - 1000125645×1
  • 81000085451
    $0.70
    allen screw M5x16-8.8 A2C DIN912 - 1000085451×4
  • 91000085587
    $0.03
    HEXAGON NUT - 1000085587×4
