WN Excavator 9503-2

9503 seperating plate Diagram

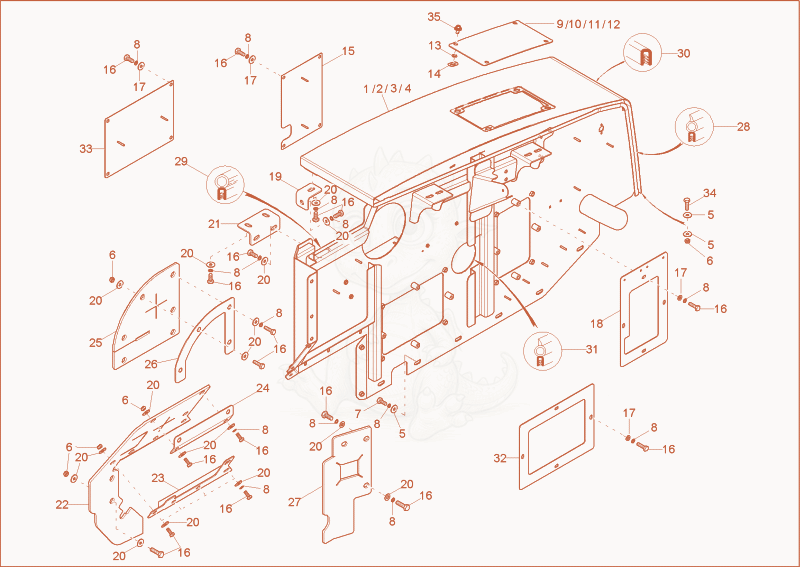

Exploded parts diagram of the seperating plate of a Wacker Neuson 9503, with numbered balloons — Hover a box for the part, its price and its row below. Click it to select.

11000180736
$3,598.77
Seperatingplate 1000180736×1
21000180046
$3,583.70
seperating plate - 1000180046×1
31000180145
$3,570.15
Seperatingplate 1000180145×1
41000180146
$3,616.83
Seperatingplate 1000180146×1
51000015434Not stocked
washer×10
61000015408
$1.33
nut M10-8 A2C-DIN985 - 1000015408×11
71000015348Not stocked
hex screw×6
81000015438Not stocked
lock washer×38
91000181002
$96.51
cover - 1000181002×1
101000160124
$77.51
cover - 1000160124×1
111000166229
$109.02
cover - 1000166229×1
121000166230
$221.10
cover - 1000166230×1
131000082705
$0.98
Camloc washer - 1000082705×4
141000082704
$2.52
stop cam CAMLOC - 1000082704×4
151000160130
$56.88
COVER - 1000160130×1
161000015345
$1.55
Hex Screw M10x25-8.8 A2K-DIN933 - 1000015345×40
171000015432
$0.05
washer 10,5 A2C DIN125 - 1000015432×16
181000160129
$65.47
fastening frame - 1000160129×1
191000160143
$19.89
angle - 1000160143×1
201000092303
$0.86
Washer 10,5 St A2C - 1000092303×30
211000160144
$28.80
angle - 1000160144×1
221000160118
$165.73
partitioning rubber - 1000160118×1
231000160128
$66.89
plate - 1000160128×1
241000160127
$49.73
angle - 1000160127×1
251000160120
$33.12
partitioning rubber - 1000160120×1
261000160126
$46.91
plate - 1000160126×1
271000160119
$33.12
partitioning rubber - 1000160119×1
281000098164
$21.58
rubber profile 1,5-3mm - 1000098164×1.9
291000097922
$19.67
rubber profile - 1000097922×0.5
301000097928
$4.57
edge protection - 1000097928×0.7
311000098164
$21.58
rubber profile 1,5-3mm - 1000098164×0.4
321000172319
$113.92
fastening frame - 1000172319×1
331000172320
$111.84
Cover 1000172320×1
341000085412
$0.87
6-Point screw M10x40-8.8 A2C-DIN933 - 1000085412×2
351000082703
$6.83
hexagon nut - 1000082703×4
