WN Excavator 9503-2

9503 Powertlit (Option) Diagram

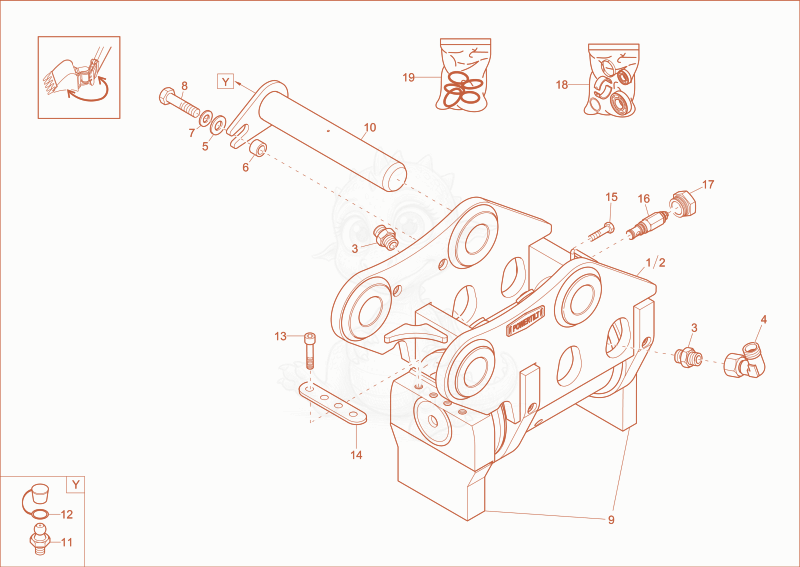

Exploded parts diagram of the Powertlit (Option) of a Wacker Neuson 9503, with numbered balloons
Hover a box for the part, its price and its row below. Click it to select.
  • 11000238100Not stocked
    POWERTILT×1
  • 21000255242Not stocked
    POWERTILT×1
  • 31000015488Not stocked
    screw joint×2
  • 41000000542
    $11.08
    EW08LOMD - 1000000542×1
  • 51000085613
    $0.10
    washer - 1000085613×2
  • 61000154661
    $3.75
    WASHER - 1000154661×2
  • 71000082609
    $0.73
    lock washer - 1000082609×2
  • 81000085437
    $1.03
    6-Point screw M12x30-10.9 A2C - 1000085437×2
  • 91000249402
    $1,206.77
    Footplate 1000249402×1
  • 91000288035
    $10.35
    cheese head screw - 1000288035×10
  • 101000115091
    $196.13
    Pin 1000115091×2
  • 111000015476Not stocked
    grease nipple×2
  • 121000015480Not stocked
    cap grease nipple×2
  • 131000328091
    $15.10
    SCREW - 1000328091×4
  • 141000327872
    $50.67
    plate - 1000327872×1
  • 151000085371
    $2.36
    hex screw M16x70 - 1000085371×6
  • 161000251511
    $994.75
    pressure limit reliefvalve - 1000251511×1
  • 171000288025
    $40.81
    PLUG - 1000288025×1
  • 181000288041
    $435.99
    MAIN BEARING SET - 1000288041×1
  • 191000251515
    $800.55
    SEAL KIT - 1000251515×1
